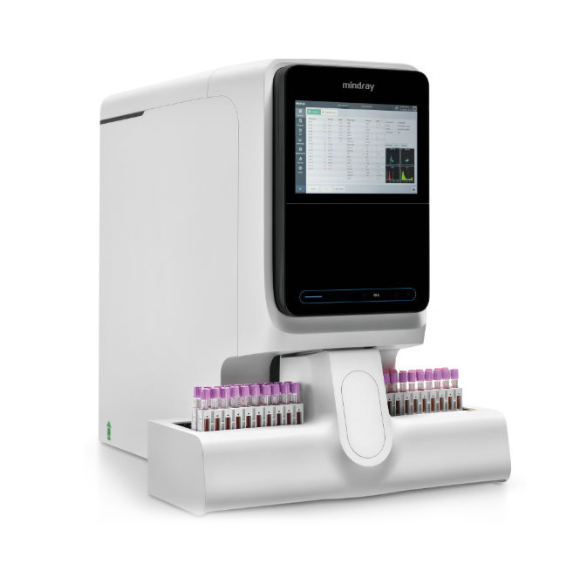

The Mindray BC-7600 is a fully automated 5-part hematology analyzer with integrated ESR, designed to deliver maximum efficiency through a single-tube, single-process workflow. Powered by Mindray’s SF-Cube technology, the BC-7600 provides accurate CBC, differential, reticulocyte, and ESR results in one test, supporting routine diagnostics, abnormal cell screening, and body fluid analysis. Its high throughput, advanced scattergram analysis, and compact design make it ideal for modern medium- to high-volume laboratories.
SF-Cube Technology – 3D scatter, fluorescence, and flow-based analysis for WBC differential, RET, PLT-H, and ESR in a single process.
Integrated ESR Module – Generates CBC/CD/CDR and ESR results in one test within 1 minute, eliminating the need for a separate ESR analyzer.
High Analytical Capability – Reports 54 clinical parameters and supports extensive research parameters for advanced hematological evaluation.
Precise Abnormal Cell Screening – Automatic detection and reporting of IMG, NRBC, blasts, and hematological malignant cells using coordinated DIFF and WNB scattergrams.
Flexible Sample Types & Throughput – Supports whole blood, micro-whole blood, prediluted samples, and body fluids with throughput up to 110 samples/hour (CBC/CD).
The Mindray BC-7600 operates based on SF-Cube technology, integrating laser scatter, fluorescence flow cytometry, and DC impedance methods. White blood cells, reticulocytes, and platelets are analyzed using 3D optical and fluorescence signals, while red blood cells and platelets are measured using the focusing flow-DC impedance method. Hemoglobin measurement uses a cyanide-free photometric method, and ESR is measured using a photometric ESR principle with strong correlation to the Westergren method.
The BC-7600 can perform CBC, differential, reticulocyte count, and ESR in one test using a single blood tube.
SF-Cube combines Scatter, Fluorescence, and 3D data analysis to improve cell differentiation accuracy and abnormal cell detection.
The integrated ESR method shows a high correlation (r = 0.94) with the Westergren reference method while delivering results in under one minute.
Yes, it supports automated analysis of pleural, peritoneal, cerebrospinal, synovial, and other body fluids without pre-treatment.
The analyzer performs automatic re-testing and re-examination based on user-defined rules, reducing manual review and improving workflow efficiency.
